SAPPHIRE PULSE Graphics Card Series expands with Radeon RX Vega 56

January 24, 2018

Sapphire, Graphics Card

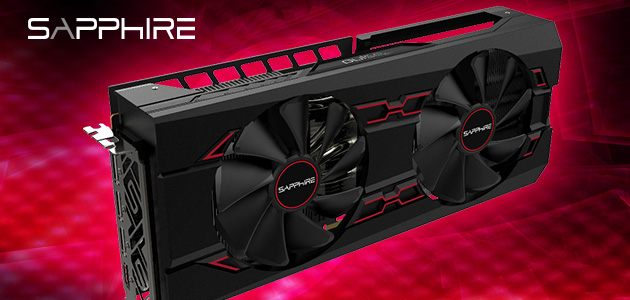

SAPPHIRE PULSE Graphics Card Series expands with Radeon RX Vega 56

Pulsing with great gaming performance and unique design

BUY ONLINE

SAPPHIRE PULSE Graphics Card RADEON RX VEGA 56

Key features:

  • Factory overclocked to 1512 MHz boost clock
  • Efficient dual-fan cooling
  • Stylish PULSE backplate and radiator shroud design


January 23rd, 2018 – SAPPHIRE Technology is expanding its PULSE Graphics Cards Series with the SAPPHIRE PULSE Radeon RX Vega 56 model. To get the best value, the PULSE edition of the RX Vega 56 has been designed with a strong focus on core features that matter most for gamers – power and cooling.

High-end gaming with Vega 56 GPU


The base of the new SAPPHIRE PULSE graphics card is a powerful Radeon RX Vega 56 chip featuring 3584 Stream Processors running with a factory-overclocked 1512 MHz Boost Clock. 8 GB of 2nd generation High Bandwidth Memory is clocked at 800 MHz (1600 Mbps Effective). Using a switch on the top of the card the user can choose a second UEFI BIOS with an efficiency preset, resulting in slightly lower clocks but also lower temperatures and power draw resulting in a quieter cooling.

Dual-X cooling


To effectively cool a factory-overclocked GPU, SAPPHIRE is using a large heatsink with a copper base and a set of four 8 mm heatpipes. The card’s heatsink actually extends past the short PCB for an increased heat dissipation area. A robust cooling module is also applied to the VRM section, with separate heatsink units connected by a single 6 mm heatpipe and aluminum base. There is also a high thermal conductivity pad on the backplate. Two efficient dual-ball bearing fans spin at a nominal speed of up to 1650 RPM, maintaining a great airflow and quiet operation. Intelligent Fan Control III system ensures the fans start precisely at 55 degrees Celsius, providing a passive, noiseless cooling in idle.


Thanks to SAPPHIRE Quick Connect 2 system, the fans are easily detachable for cleaning or swapping.


Original PULSE Design & Quality

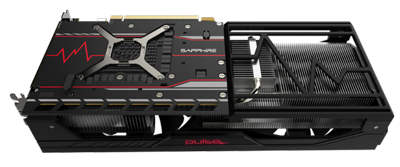

The SAPPHIRE PULSE Radeon RX Vega 56 is a cohesively designed product, with the fan shroud, the aluminum backplate and the back heatsink frame all accentuating the series’ unique style.







Making no compromises on components, the SAPPHIRE PULSE Radeon RX Vega 56 features latest generation of Black Diamond Chokes for reduced coil temperatures and better power efficiency. The external PCI-E power connectors have a fuse protection built into the circuit to better protect the card.


Introducing SAPPHIRE NITRO+ Radeon RX Vega 56


SAPPHIRE Technology is also announcing the SAPPHIRE NITRO+ Radeon RX VEGA 56. Sporting a core boost clock of 1550 MHz, NITRO Glow RGB LEDs on the back and side and a copper-based main cooling module. The model will come bundled with the NITRO Gear Card Support Bracket.







Specifications:

Model SAPPHIRE PULSE Radeon™ RX Vega 56 SAPPHIRE NITRO+ Radeon™ RX Vega 56
Memory 8 GB HBM2 2048-bit 8 GB HBM2 2048-bit
Stream processors 3584 3584
Compute units 56 56
Boost clock 1512 MHz 1550 MHz
Base clock 1208 MHz 1266 MHz
Memory clock 800 MHz (1.6 Gbps) 800 MHz (1.6 Gbps)
Cooling system

2x 92 mm dual-ball bearing fans

Nominal speed: 0~1650 RPM

Maximum: 3300 RPM

Main module:

Heat pipes (4x 8 mm)

Copper base

VRM module:

Heat pipes (1x 6 mm)

Aluminum base

2x 92 mm dual-ball bearing fans running

anticlockwise (left & right)

1x 80 mm dual-ball bearing fan running clockwise (middle)

Nominal speed: 0~1500 RPM

Maximum: 3200 RPM

Main module:

Heat pipes (3x 8 mm + 3x 6 mm)

Copper base

VRM module:

Heat pipes (2x 6 mm)

Aluminum base

Outputs

1x HDMI 2.0b

3x DisplayPort 1.4

2x HDMI 2.0b

2x DisplayPort 1.4

Interface PCI-Express 3.0 PCI-Express 3.0
Power Design 7 Phase Digital Power 12 Phase Digital Power
Power Connectors 2x 8-pin 2x 8-pin
PCB Layers 6 8
Form factor

2.5 slot, ATX

282 x 125 x 50 mm

3 slot, ATX

310 x 133 x 54 mm

Special features

Dual UEFI Bios

SAPPHIRE Quick Connect 2

Intelligent Fan Control III

Precision Fan Control

Black Diamond Chokes 4th gen

Fuse protection

Dual UEFI Bios

NITRO FanSafe and Fan Health Check

SAPPHIRE Quick Connect 2

Intelligent Fan Control III

Precision Fan Control

Black Diamond Chokes 4th gen

Fuse protection

NITRO Glow (RGB LED on logo & backplate) Turbine-X system fan control

NITRO Gear Card Support Bracket included

Technologies DirectX 12, Vulkan 1.0, OpenGL 4.5, OpenCL 2.0, AMD FreeSync, AMD CrossFire XDMA (bridgeless), AMD Eyefinity, AMD LiquidVR DirectX 12, Vulkan 1.0, OpenGL 4.5, OpenCL 2.0, AMD FreeSync, AMD CrossFire XDMA (bridgeless), AMD Eyefinity, AMD LiquidVR
